APEX EZ Sanders
Starting at $17,595.00
Description
Metal Widebelt EZ Sanders
The Metalworking Widebelt EZ Sander is a cost-effective way to finally upgrade your deburring and finishing operations, moving away from time-consuming hand grinding. With just a quick change of the abrasive belt, this compact machine can remove slag/dross, grind vertical burrs, or straight grain finishing (including some mill scale removal).
The EZ Sander was developed to fit the needs of both small metalworking shops, as well as, large production facilities looking for an easy way to run small projects “off-line” from their main production flow. With a small footprint and the ability to mount on casters, this machine is portable enough to fit almost any shop. Don’t let the small size fool you, the EZ Sander is loaded with features and is heavy-duty enough to provide years of dependable, consistent, labor-saving production.
EZ SANDER MACHINE FEATURES
- 36″ wide part capacity
- 37″ x 60″ abrasive belts
- Variable speed conveyor at 5-25 fpm
- 5″ bed opening with motorized lift
- Digital thickness readout for conveyor height
- Control panel with motor load meter, hour meter, and digital readout

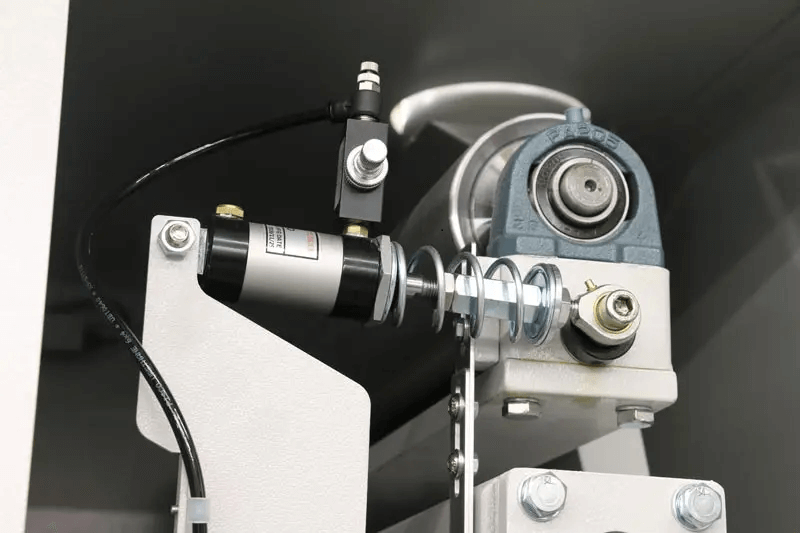

- Electronic abrasive belt tracking
- Pneumatic abrasive tensioning
- Air operated disc brake
- 6″ diameter cam adjustable contact drum with dial indicator
- Heavy-duty welded frame
- Casters for portability
- Optional portable 5 HP wet dust collector
Models
|
EZ Sander by Apex 37” Wide Single Head Wide Belt Machine
|
$17,595.00 |
|---|---|
|
Apex Model 2037M-D Heavy Duty 37” Wide Single Head Wide Belt Machine
|
$32,495.00 |
|
Apex Model 2037M-DD Heavy- Duty 37” Wide Two Head Wide Belt Machine Belt cleaning device for processing small parts as small as 2” x 4” ($4995) VFD for Second Head ($5395)
|
$52,995.00 |
|
Apex 1037M-DSc, 37” wide two head belt / disc grinding / de-burring machine with belt cleaning unit
|
$76,995.00 |
|
Apex Machine Group Model 2037M-DSS 37” Three Head Wide Belt / Disc / Disc Deburring and Finishing Machine
|
$105,495.00 |
|
Apex Model 2052M-D Heavy Duty 52” Wide Single Head Wide Belt Machine VFD for last sanding head for fine grain finish - ($6995)
|
$52,995.00 |
|
Apex Machine Group model 2052M-DD, 52” Two Head Belt / Belt Machine VFD for last sanding head for fine grain finish - ($6995)
|
$85,495.00 |
|
Small parts conveyor system with sticky conveyor belt (2037M-D)
|
$38,495.00 |
|
Small parts conveyor system with sticky conveyor belt (2052M-D)
|
$61,495.00 |
Accessories
|
6” ducting package to connect EZ Sander to wet dust collector
|
$395.00 |
|---|---|
|
PWDC-Wet Dust Collector 5 HP 1,250 CFM
|
$7,595.00 |
Specifications
| Abrasive Belt Size | 37″ x 60″ |
|---|---|
| Motor Size | 10 HP or 15 HP |
| Number of Heads | 1 |
| Conveyor Opening | 0-5″ |
| Floor to Table Height | 31-3/8″ to 37-3/8″ |
| Conveyor Drive Motor | 1 HP |
| Feed Speed | 5-25 FPM |
| Shipping Weight | 2,150 Lbs. |
Part Processing Limitations
| Max Width | 37″ |
|---|---|
| Max Thickness | 5″ |
| Min. Length* | 10″ |
