Industrial Series (IS) CNC Routers
Description
The ShopSabre IS Series features an oversized structural tube steel, one-piece welded frame construction with a massive structural steel tube gantry design. Competing against machines that retail well beyond $100,000, the IS Series delivers advanced CNC capabilities at a fraction of the cost!
Each machine is engineered with FEA (Finite Element Analysis), aerospace milled, and laser-calibrated to ensure precision and accuracy from the ground up. Our IS Series CNC router features upgraded stack steel construction and comes equipped with the industry’s most advanced drive technology – anti-backlash ball screws on all axes, featuring ShopSabre’s “Whip-Free” technology. The IS Series also includes advanced AC digital servo motors with matching amplifiers and glass encoder technology. These features enhance cutting quality, cutting forces, and overall machine accuracy. Unlike similarly priced competitors, this machine has absolutely no rack-and-pinion drives, giving you a clear advantage over the competition.
ShopSabre machines are built to outlast and outperform. No matter how much you use your CNC router, the ShopSabre IS Series delivers the precision you need every time. Perfect for high-production or heavy-cutting applications, this state-of-the-art IS Series offers three sizes to fit your needs: 4’x8’, 5’x10’, and 6’x12’.
Highlighted Features
- Italian HSD electric fan-cooled spindle, available in single-phase or three-phase operation, with or without the Auto Tool Changer (ATC) option (100% duty-rated).
- 100% powered by oversized ball screw drive systems in the X-axis, dual-driven Y-axis (long axis) with Anti-Whip Technology, and Z-axis. Watch our ball screw video.
- Industry-leading components, including industrial digital A/C closed-loop brushless servo motors with glass encoder technology and individual drive amplifiers with digital tuning. Watch our top servo motor technology video
- Industrial welded, stress-relieved, and aerospace-milled structural steel tube frame construction.
- Industrial structural steel tube gantry uprights and steel cross bridge with milled mating surfaces. Watch our steel vs aluminum video.
- ShopSabre reinforced Z-axis technology with tool plate stiffeners and optional Super Z technology.
- High-performance 25mm linear profile guide rails and bearings with quad rollers on all axes. Watch our linear guide rails video.
- ShopSabre state-of-the-art tool measure technology. Watch our tool measure video.
- Quick-release dust skirt technology (ask about Dust Dock technology for ATC systems). Watch our Dust Dock videos.
- Vectric VCarve PRO CAD/CAM full license software.
- Easy-to-learn software with point-and-click technology, including at-machine CAD/CAM capabilities. Watch our control screen video.
- At-machine solid-state hard drive for easy job storage, dedicated high-speed multi-axis controller technology.
- Rolling control tower for machine operators with an integrated PC system, full networking, and file management via USB and internet connectivity.
- Grow with your business by expanding options to meet your exact needs. Watch our expansion equipment video.
- ShopSabre CNC name-brand electronics, including industrial continuous flex robotic wiring, wire carriers, and industrial connectors.
- Advanced, smart A/C digital super servo motors with individual amplifiers and glass encoder technology.
- Precision linear guide rails and bearings on all axes.
- MDF tabletop fastened to a structural steel table frame (optional tops available).
- Steel machine operator’s control stand with casters, keyboard tray, mounted emergency stop button, and integrated machine controls with built-in cooling fans and plug-and-play power connections.
- ShopSabre CNC onboard computer system with integrated WINCNC controller hardware and software (touch screen upgrade available).
- ShopSabre CNC controller hardware and software with point-and-click technology.
- At-machine file management with a solid-state hard drive.
- Emergency stop (E-Stop) switch.
- Limit switches on all three axes.
- Auto tool measure switch for tool calibration and fast tool changing.
- USB and internet connectivity.
- Standard G-code compatible.
- Direct DXF import supported (other file types accepted in CAD/CAM software).
- Free SabreNation lifetime tech support via phone, email, and remote diagnostics! Watch our support video.
- Free SabreNation lifetime training and SabreNation University access!
- Complete warranty included.
- Quick and effortless installation – machine ships fully assembled with no installation assistance required!
- ShopSabre CNC training available (ask for details).
- MADE IN THE U.S.A. — American manufactured and engineered using FEA software. Watch our engineering video.
- UL/CUL certified control box.
Well Equipped
Includes:
- Aerospace-milled welded structural steel frame and structural steel gantry bridge with steel tube uprights
- 3-axis ball screw drive technology with ShopSabre Twin Screw Anti-Whip Technology on the Y-axis
- 25mm linear guide rails and bearings on all axes
- Ethernet/network-ready machine controller with at-machine PC and Windows OS
- Vectric VCarve PRO CAD/CAM software license
- AC digital closed-loop servo motors with absolute encoder technology and individual amplifiers with alarm system
- Z-axis brake system with fail-safe protection
- Automated control of the spindle via G-code and control system
- Professional wire management system
- Dust boot with 4” port
- Limit switches and boundary sensing
- Emergency stop (E-Stop)
- Auto tool measuring touch pad
- Auto Z-height measuring touch pad
- Surfaced phenolic hi-flow vacuum-ready tabletop with 4 independently controlled zones
- 10HP/12HP HSD electric fan-cooled Auto Tool Changer with 12 tool positions, including 12 ISO30 tool holders and ER32 collets
- Tool rack, tool chuck, collet wrenches, and VFD for single-phase or three-phase operation
- Industrial table reference pins (pop-up pins)
- Machine maintenance kit
- ShopSabre SabreNation Support (phone, email, remote connectivity) for the life of the original owner
- SabreNation Training and University access for the life of the original owner
Some items may be able to be removed or modified depending on needs
IS 408 |
IS 510 |
IS 612 |
|
| Footprint | 88" x 133" x 93" | 97" x 156" x 93" | 103" x 179" x 93" |
| Cut Area | 65" x 100" x 12" | 75" x 125" x 12" | 85" x 145" x 12" |
| Z Clearance | 12" standard | 12" standard | 12" standard |
| Z Travel | 16" | 16" | 16" |
| Rapid Speed | 2100IPM | 2100IPM | 2100IPM |
| Repeatability | +/-.001" | +/-.001" | +/-.001" |
| Drive Motors | AC Servo Motors | AC Servo Motors | AC Servo Motors |
| Drive System | Ball Screw X, Dual Y, & Z axis | Ball Screw X, Dual Y, & Z axis | Ball Screw X, Dual Y, & Z axis |
| Well Equipped | $56,495.00 | $59,495.00 | $64,995.00 |
| Get a Quote | Get a Quote | Get a Quote | |
Finance for as low as $1,022.56/month |
Finance for as low as $1,076.86/month |
Finance for as low as $1,176.41/month |
Finance CalculatorQuestions?
Are you not sure which CNC machine is right for you and your production? Schedule a free consultation with one of our in-house experts for personalized, one-on-one guidance.
Industrial Series (IS) CNC Routers Features

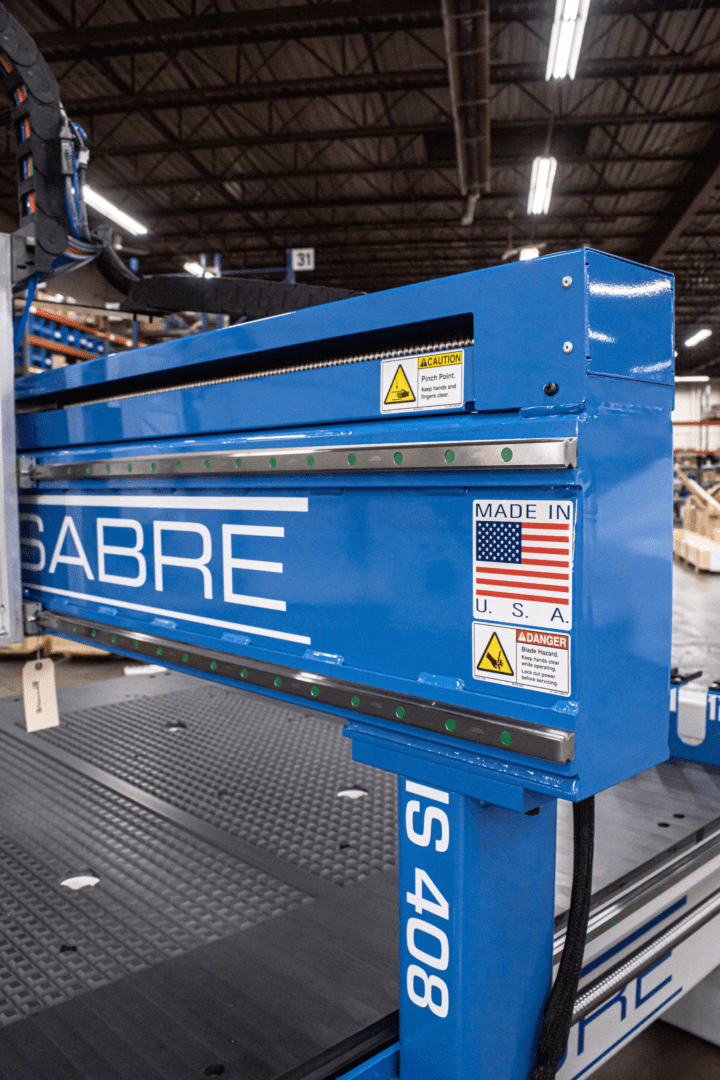

Industrial Precision Frame
Like everything on a ShopSabre, the Gantry uprights are also more industrial. Using High Quality North American Structural Steel these uprights increase the bridge clearance to 12 Standard and provide more rigidity for better cutting quality and versatility.
Industrial Series (IS) CNC Routers Features
Digital A/C Servo Motors
ShopSabre IS Series machines come standard with AC digital closed-loop servo motors for higher speeds, greater accuracy, and less maintenance. Self-monitoring glass encoder technology provides extreme performance, delivering some of the top-rated servo technology in the world!
Industrial Series (IS) CNC Routers Features
Aero Space Milling Technology
ShopSabre CNC frames are processed through some of the world’s most advanced methods to ensure accuracy, including precision milling of contact surfaces for bearing and rail placement, as well as ball screw mounts. A machine can only be as accurate as its foundation, so the frame on a ShopSabre is built to a tolerance above the competition.
Industrial Series (IS) CNC Routers Features
Ball Screw Technology
ShopSabre IS machines come standard with 3-axis ball screw drives. The Y-axis (long axis) features twin screws, providing 7 times more rigidity than competing machines and unprecedented performance. ShopSabre’s ball screw technology offers less backlash than rack and pinion and, thanks to our Whip-Free technology, increases cutting accuracy and delivers superior edge finishes. This ball screw technology can outlast most comparable machines by as much as 3 to 4 times, with very little maintenance required.
Industrial Series (IS) CNC Routers Features
Vacuum Performance
The vacuum option on the ShopSabre IS Series provides quick and easy zone control with an integrated hard pipe connection for increased airflow and a reserve tank built into the frame to ensure consistent vacuum performance.
Industrial Series (IS) CNC Routers Features
Industrial Precision Frame
Like everything on a ShopSabre, the Gantry uprights are also more industrial. Using High Quality North American Structural Steel these uprights increase the bridge clearance to 12 Standard and provide more rigidity for better cutting quality and versatility.
Industrial Series (IS) CNC Routers Features
Digital A/C Servo Motors
ShopSabre IS Series machines come standard with AC digital closed-loop servo motors for higher speeds, greater accuracy, and less maintenance. Self-monitoring glass encoder technology provides extreme performance, delivering some of the top-rated servo technology in the world!
Industrial Series (IS) CNC Routers Features
Aero Space Milling Technology
ShopSabre CNC frames are processed through some of the world’s most advanced methods to ensure accuracy, including precision milling of contact surfaces for bearing and rail placement, as well as ball screw mounts. A machine can only be as accurate as its foundation, so the frame on a ShopSabre is built to a tolerance above the competition.
Industrial Series (IS) CNC Routers Features
Ball Screw Technology
ShopSabre IS machines come standard with 3-axis ball screw drives. The Y-axis (long axis) features twin screws, providing 7 times more rigidity than competing machines and unprecedented performance. ShopSabre’s ball screw technology offers less backlash than rack and pinion and, thanks to our Whip-Free technology, increases cutting accuracy and delivers superior edge finishes. This ball screw technology can outlast most comparable machines by as much as 3 to 4 times, with very little maintenance required.
Industrial Series (IS) CNC Routers Features
Vacuum Performance
The vacuum option on the ShopSabre IS Series provides quick and easy zone control with an integrated hard pipe connection for increased airflow and a reserve tank built into the frame to ensure consistent vacuum performance.
