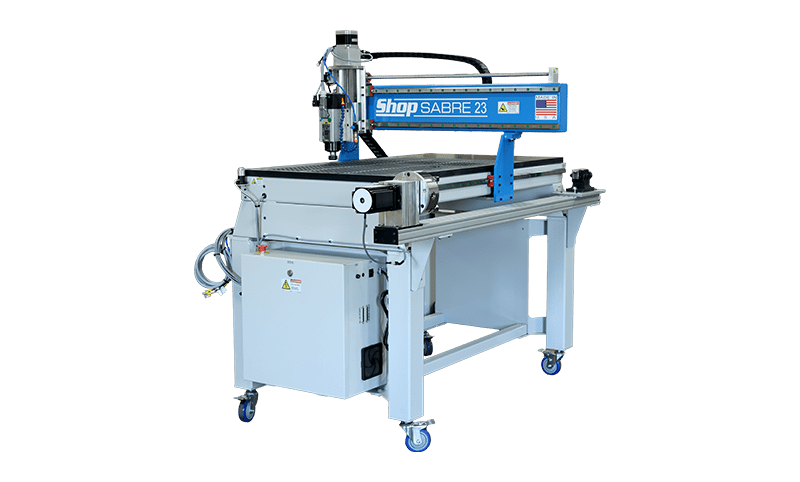

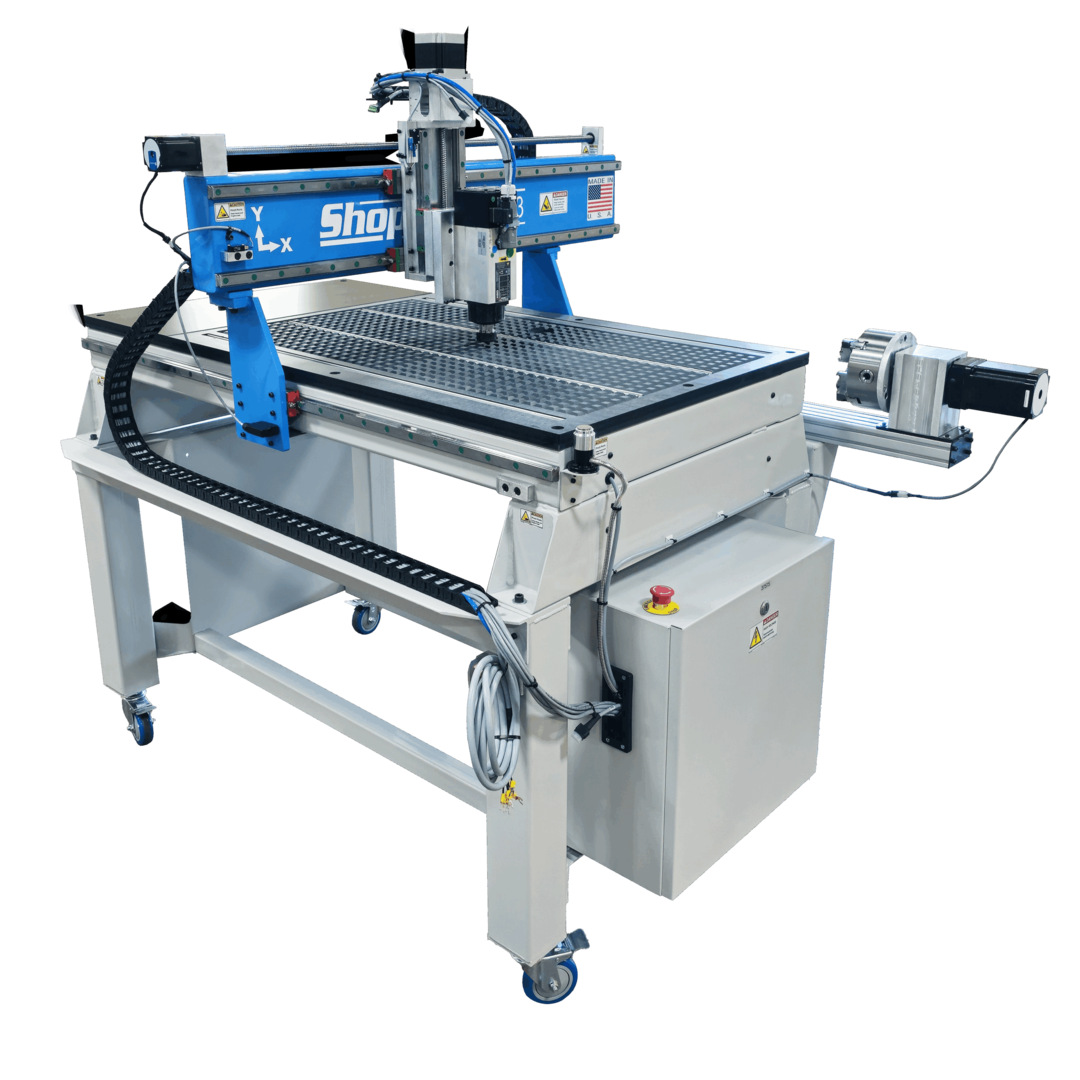

ShopSabre 23 CNC Router
Description
Now you can bring the power and capabilities of an industrial CNC router to your desktop. The ShopSabre 23 is the first desktop CNC router model with the rigid build of an industrial CNC machine. Designed with industrial ball screws on every axis and equipped with the advanced capabilities of ShopSabre control system, you get better motion and more control than any other machine in this price or size range.
Proudly built in the U.S.A., the ShopSabre 23 revolutionizes the hobbyist/desktop market with a high-quality construction that hasn’t previously been available in a machine of this size. The ShopSabre 23 is perfect for educational settings, hobbyist shops, and startup companies where a large machine simply isn’t possible. Complete with our SabreNation lifetime support, this CNC machine is perfect for every user from a novice to the most experienced CNC user. Contact us today to find out how you can get everything you need from a CNC router that fits right on your work bench.
Highlighted Features
- Variable RPM 3.5HP 110V Router with Industrial Mounting Bracket and G-Code Control of Router on/off. (HSD Italian Spindle upgrades available)
- Industrial ball screw design on X, Y, and Z axis Watch our ball screw video!
- Industrial High Torque Micro-step drive system (Largest Z Motor in Class for Quicker Response/3D)

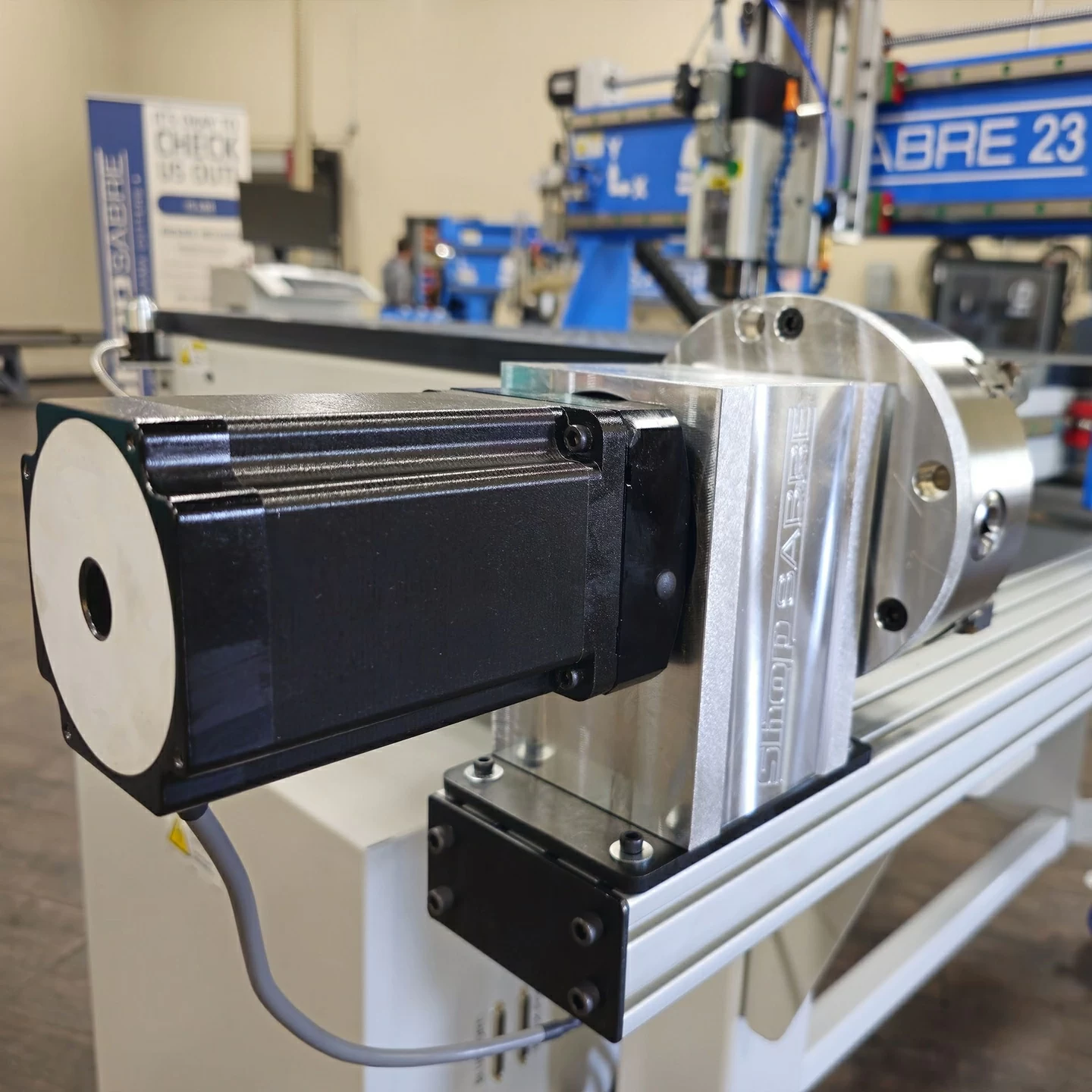

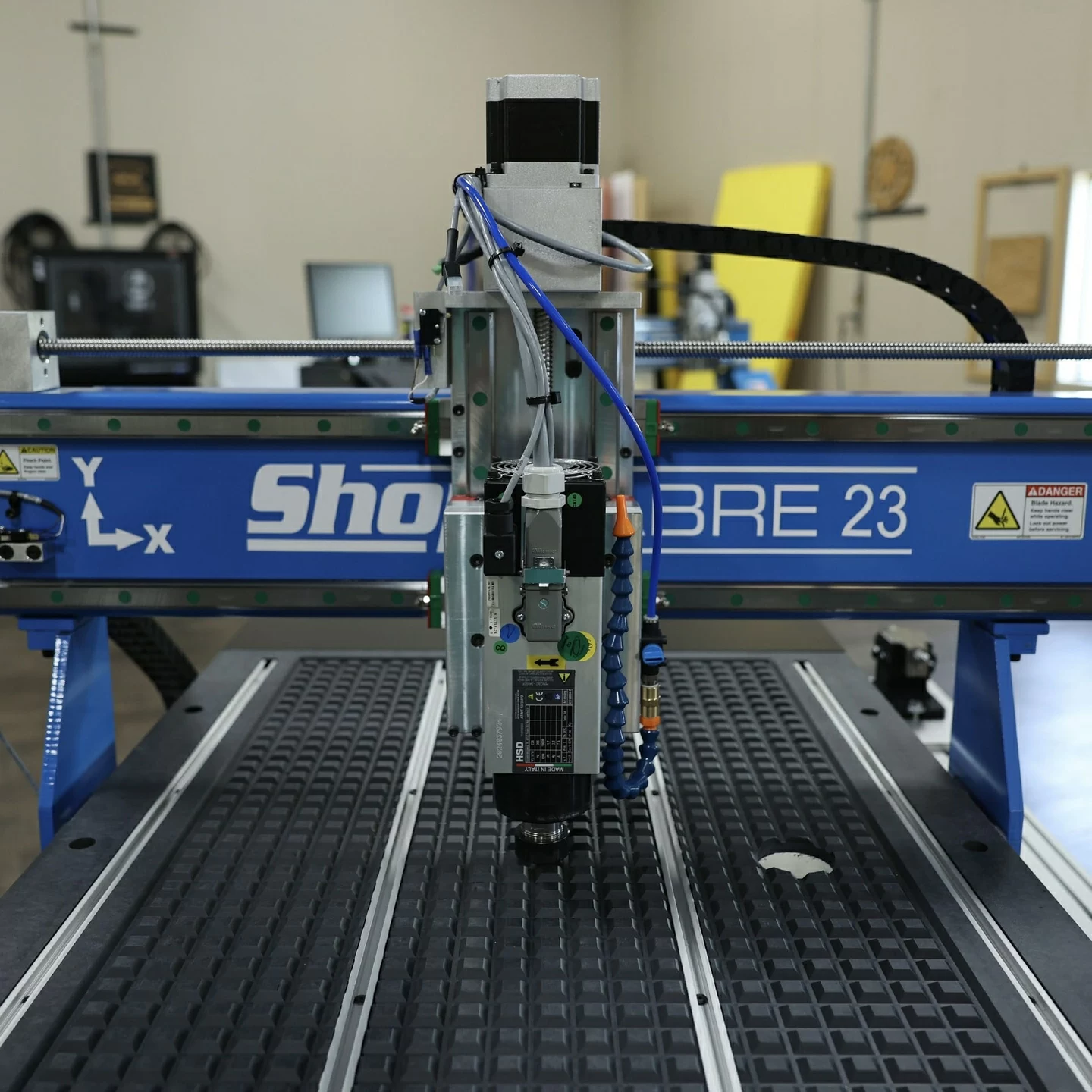

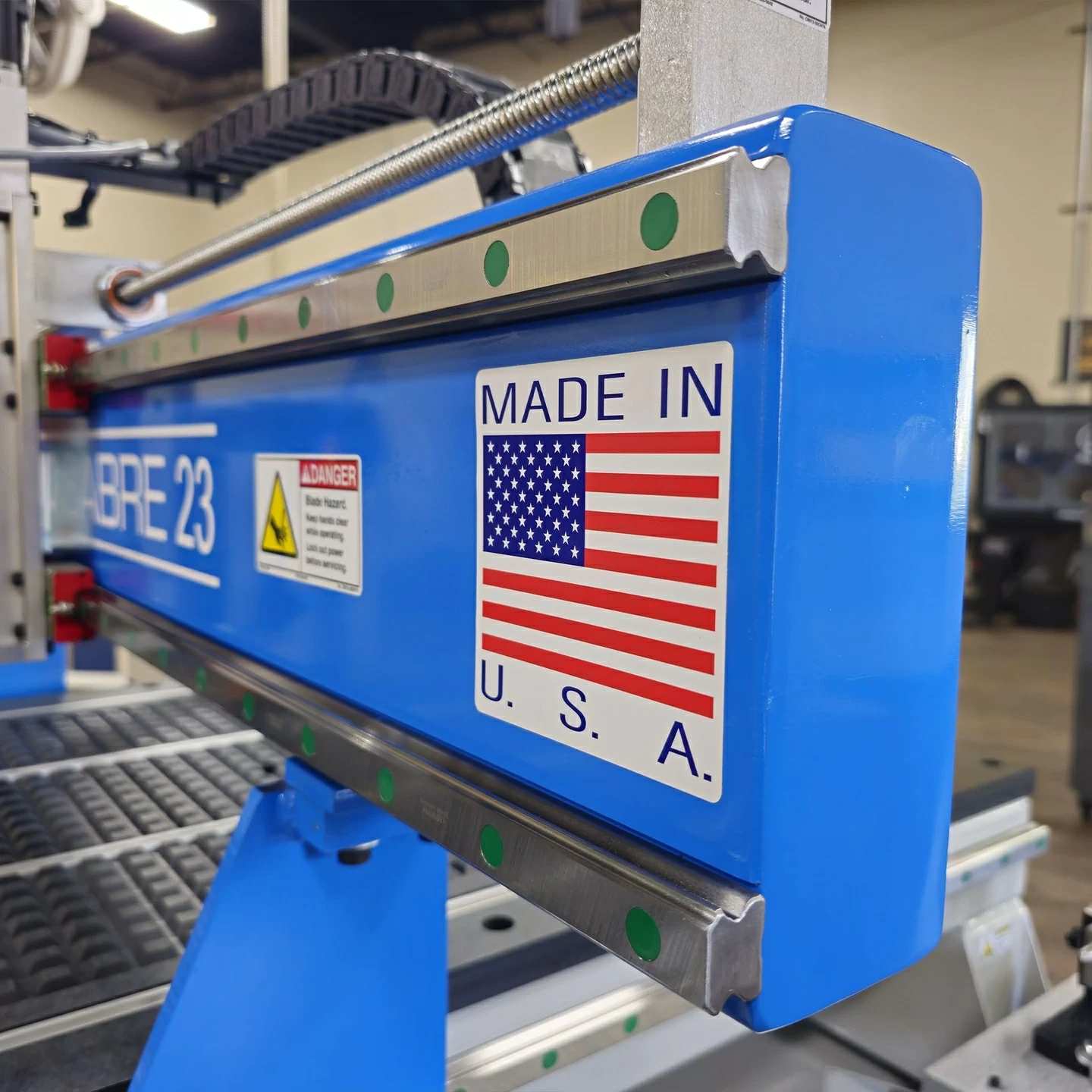

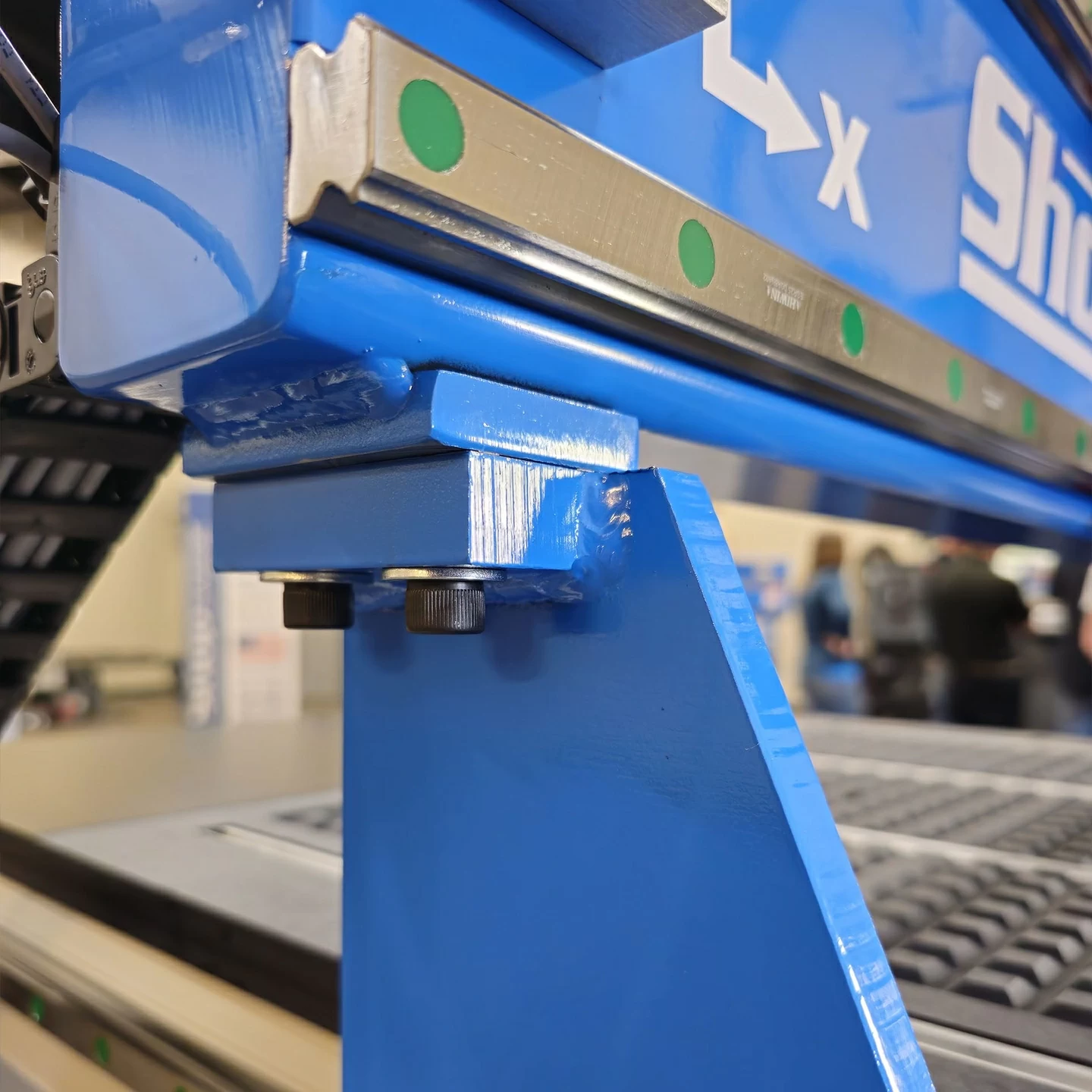

- Precision Milled Rigid Structural Tube Steel Gantry with Plate Steel Gantry Uprights. The Gantry has an engineered & designed overhang for advanced machining abilities on the right for use with the ShopSabre 4th Axis Indexing Option or your own custom fixturing.
- Welded One Piece Structural Tube Steel Frame Watch our steel vs aluminum video!

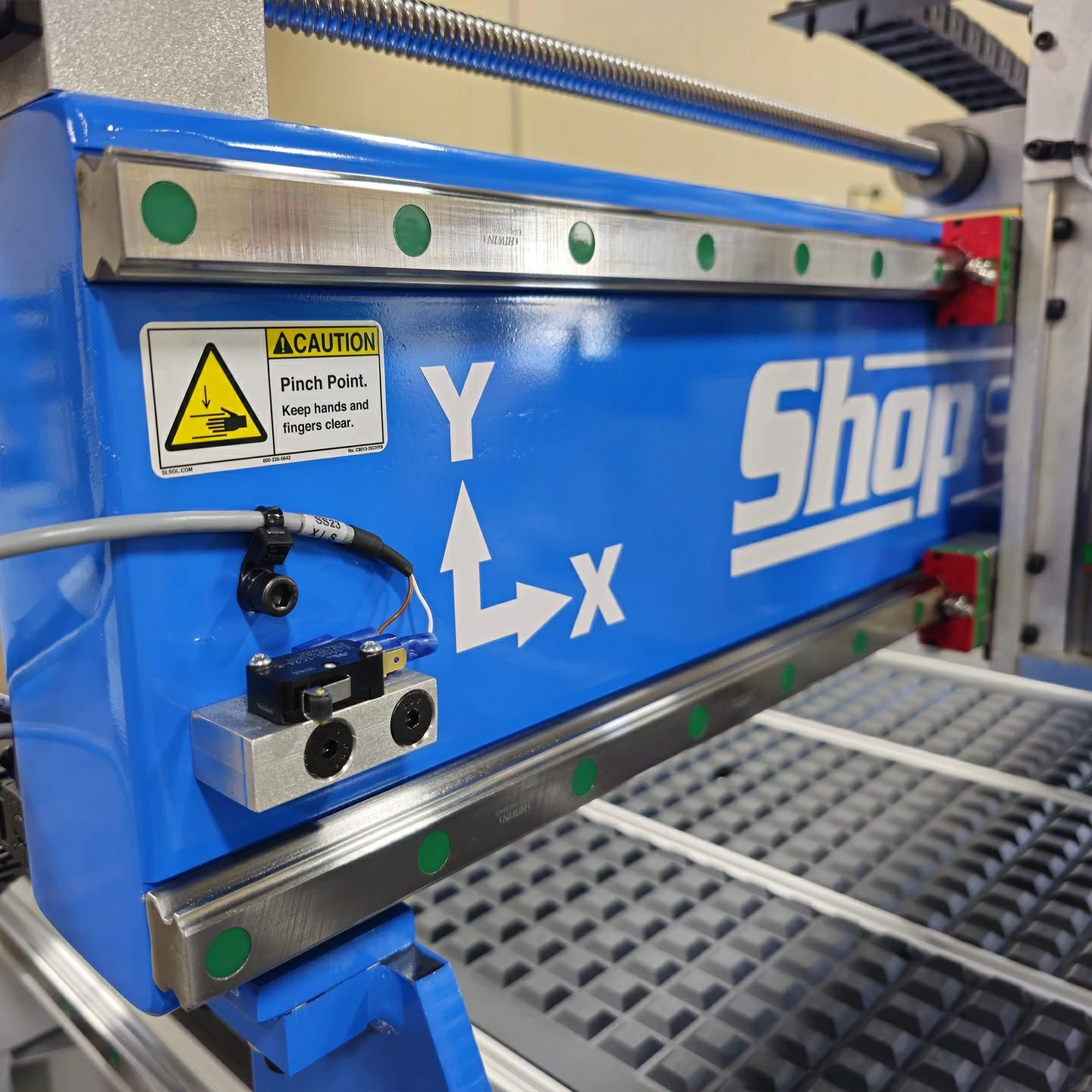

- High Performance 25MM linear profile guide rails and bearings with Quad Rollers on all axis
- ShopSabre State-of-the-art Tool Measure Technology Watch our tool measure video!

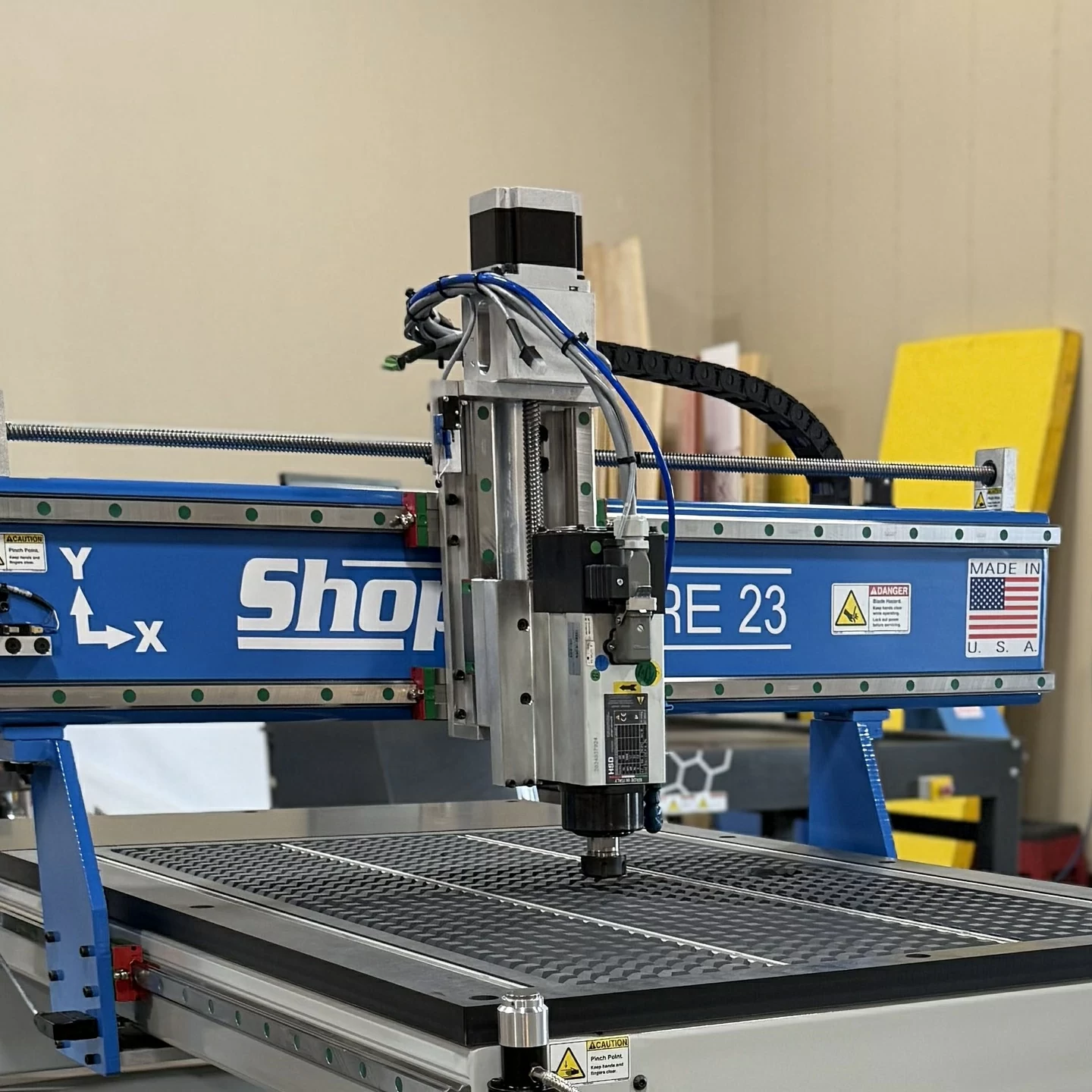

- ShopSabre Upgraded Z Axis Technology with Tool Plate Stiffeners
- Quick Release Dust Skirt Technology
- Vectric VCarve PRO CAD/CAM Full License Software
- Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities Watch our control screen video!
- At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high speed multi-axis controller Technology
- Machine Operator Included PC System with full Networking and file management via USB and internet connectivity Includes Windows OS
- Free SabreNation Life-Time Tech Support via Phone, Email, and Remote Diagnostic! Watch our support video!
- Free SabreNation Life-time Training and SabreNation University Access!
- Included Complete Warranty
- Quick and Effortless Installation – Machine Ships Fully Assembled with No Installation Assistance Required!
- MADE IN THE U.S.A. — American Manufactured & Engineered using FEA Software Watch our engineering video!
- Grow with your business by expanding options that meet your exact needs Watch our expansion equipment video
Well Equipped
Includes:
- Welded Structural Steel Frame & Structural Steel Gantry Bridge
- 3 Axis Ball Screw Drive Technology
- 25MM Linear Guide Rails & Bearings on All Axis
- Ethernet / Network Ready Machine Controller with at Machine PC & Windows OS
- Vectric VCarve PRO CAD/CAM Software License
- High Precision High Torque Digital Micro step Motors
- Automation Control of Spindle via G-Code & Control System

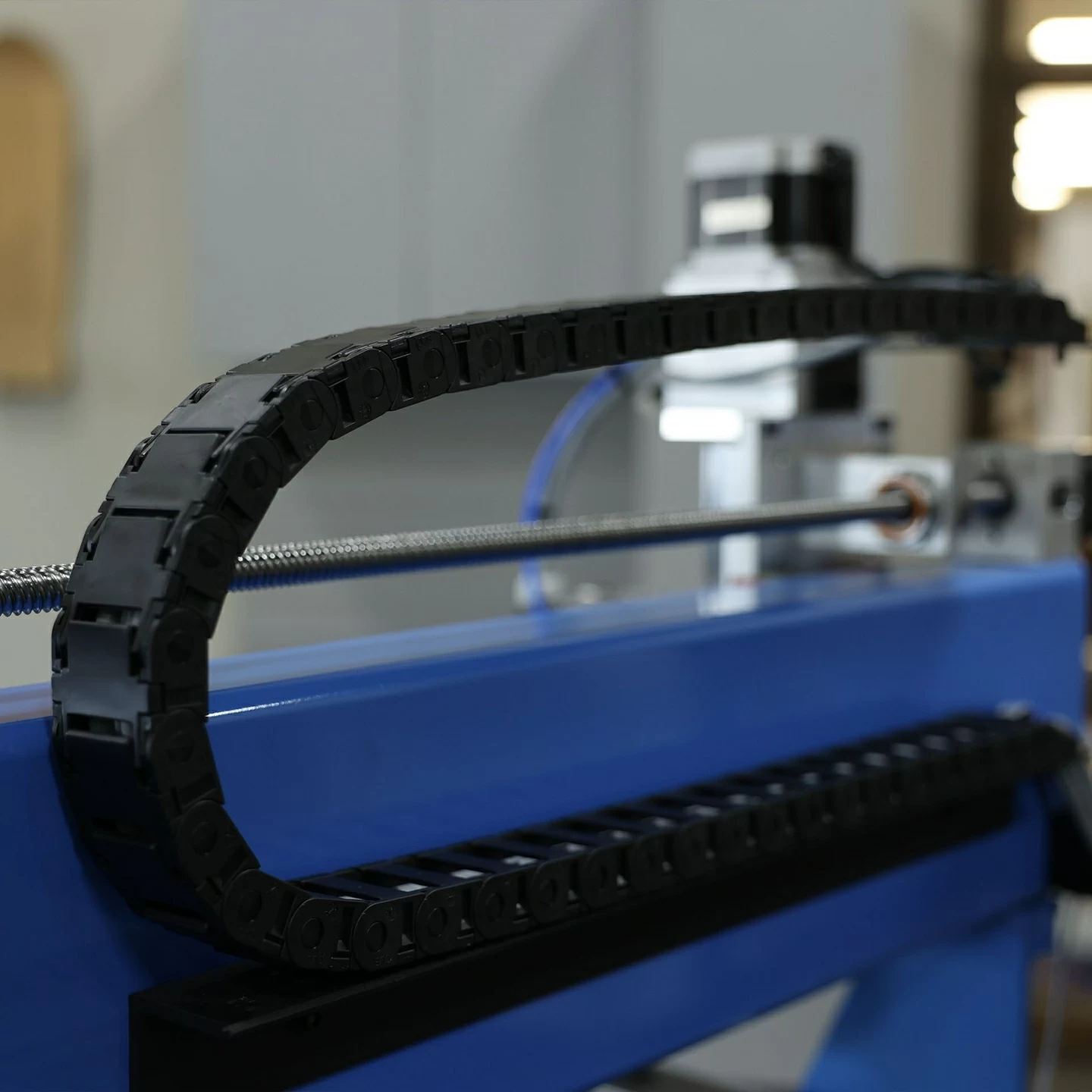

- Professional Wire management system
- Dust Boot with 4” Port
- Limit Switches and Boundary Sensing
- Emergency Stop

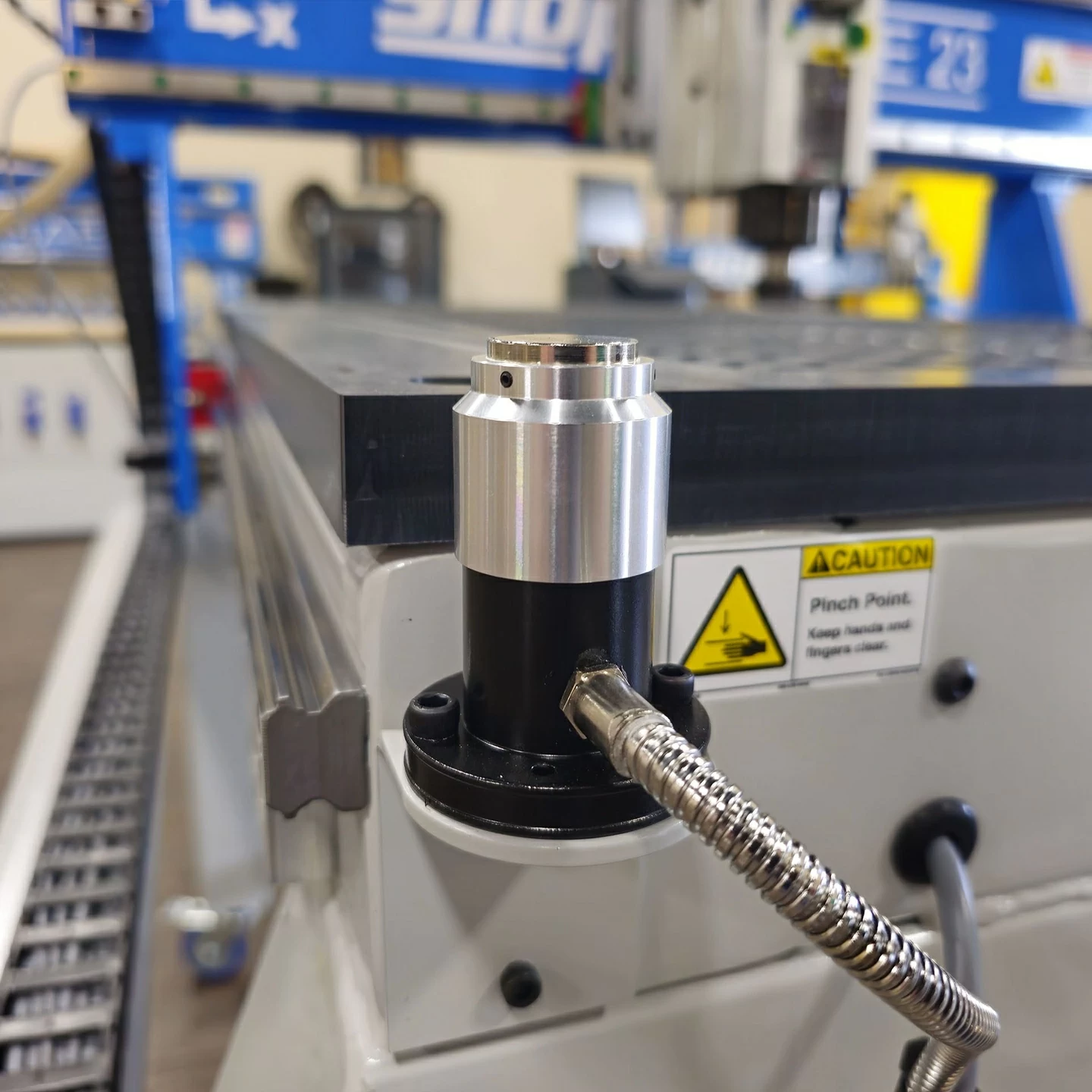

- Auto Tool Measuring Touch Pad
- Auto Z Height Measuring Touch Pad
- Industrial Steel Machine Bench with Locking Casters
- T-Slots for Material Clamping
- Surfaced MDF Table Top

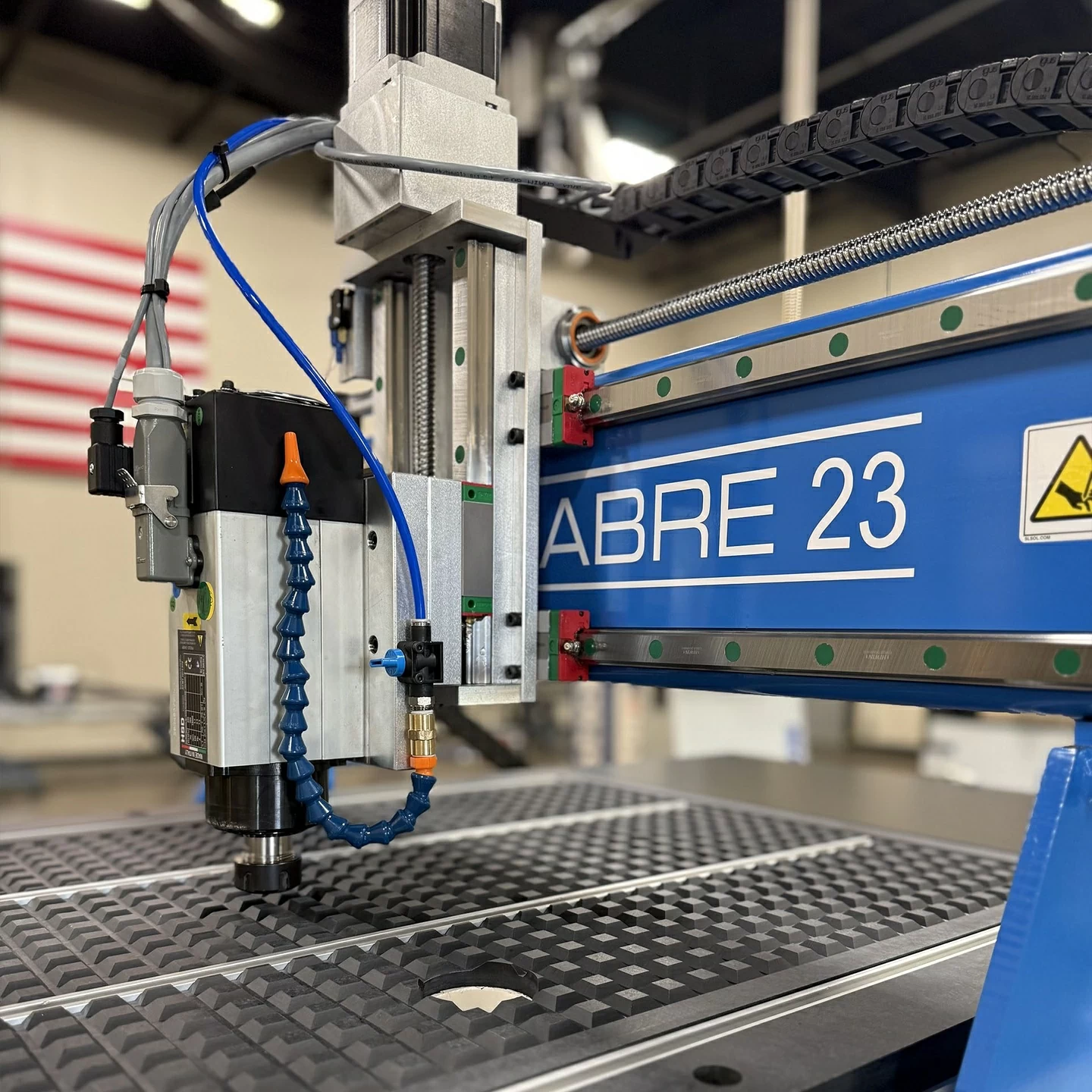

- 2.2 HP HSD Spindle with Electric Cooling Fan & VFD for 1Ph or 3Ph operation
- Machine Maintenance Kit
- ShopSabre SabreNation Support (Phone, email, remote connectivity) for Life of Original Owner
- SabreNation Training & University Access for life of Original Owner
Some items may be able to be removed or modified depending on needs
ShopSabre 23 |
|
| Footprint | 48.5" x 69" x 34" (Add 22" for optional stand) |
| Cut Area | 30" x 40" |
| Z Clearance | 5" Standard |
| Shipping Weight | 850-1100lbs (Depending on Options) |
| Traverse Speed | 600IPM |
| Repeatability | +/-.001" |
| Drive System | XYZ - Ball Screw |
| Well Equipped | $15,495.00 |
| Get a Quote | |
Finance for as low as $280.46/month |
Finance CalculatorQuestions?
Are you not sure which CNC machine is right for you and your production? Schedule a free consultation with one of our in-house experts for personalized, one-on-one guidance.
ShopSabre 23 CNC Router Features
Industrial Precision Frame
ShopSabre CNC Frames are FEA Engineered and Tested constructed from Massive Structural Steel Tubes which are Welded for added rigidity. Each ShopSabre 23 Series Frame comes with 2 Large Laterally Braced Tube legs to giving you more floor contact and better vibration control.
ShopSabre 23 CNC Router Features

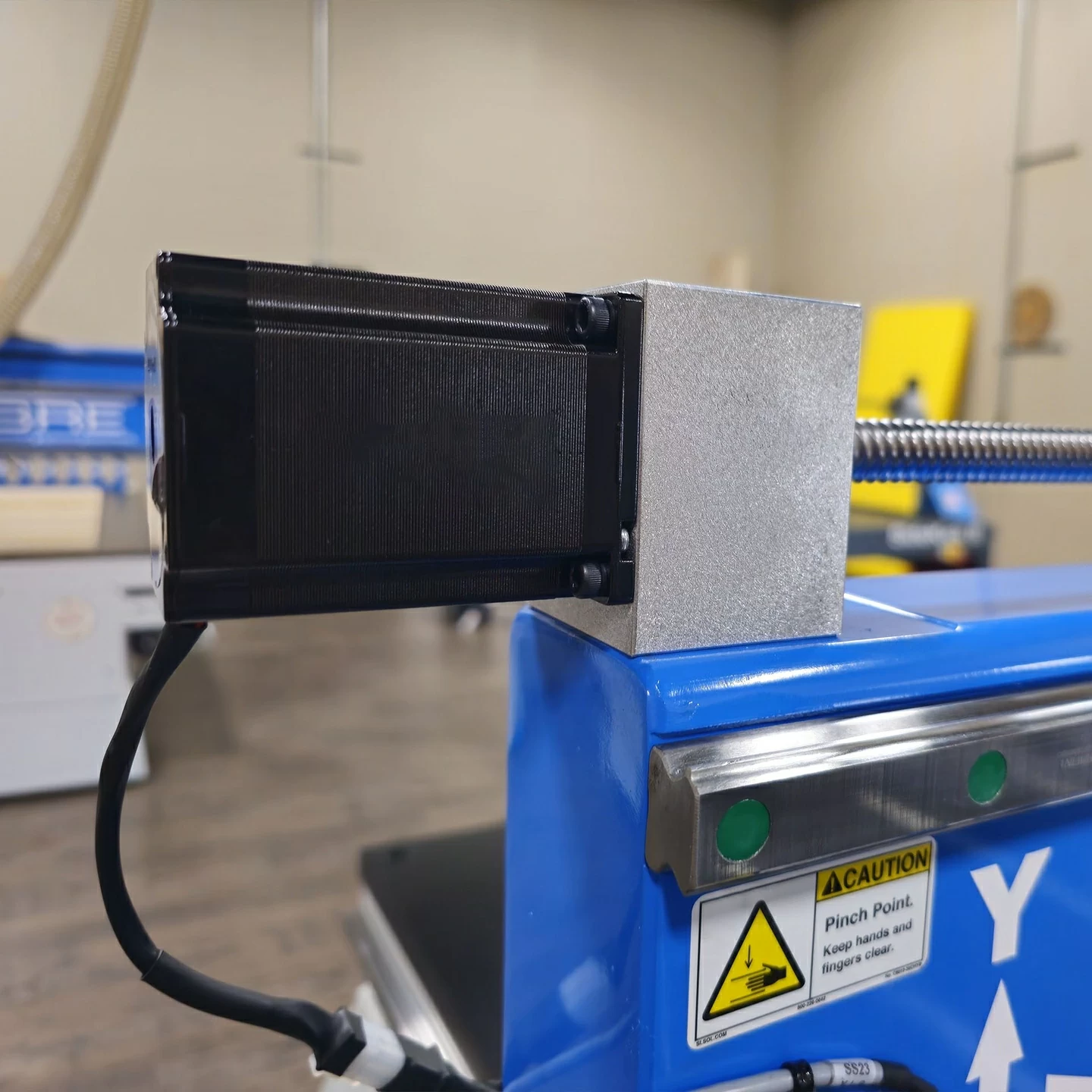

Advanced Drive Motors
ShopSabre 23 Machines come standard with High Torque Industrial Grade Motors for Higher Accuracy, Higher Cutting Torque, and Less Maintenance. Each drive motor is specifically FEA paired to the machine for output and torque to assure you dont need to add air to the machine to operate regardless of the options you select!
ShopSabre 23 CNC Router Features
Aero Space Milling Technology
ShopSabre CNC Frames are Run through some of the worlds most advanced processes to assure they are accurate including Precision Milling of contact surfaces for Bearing & Rail Placement. A machine can only be as accurate as its foundation so the Frame on a ShopSabre is built to a tolerance above the competition.
ShopSabre 23 CNC Router Features

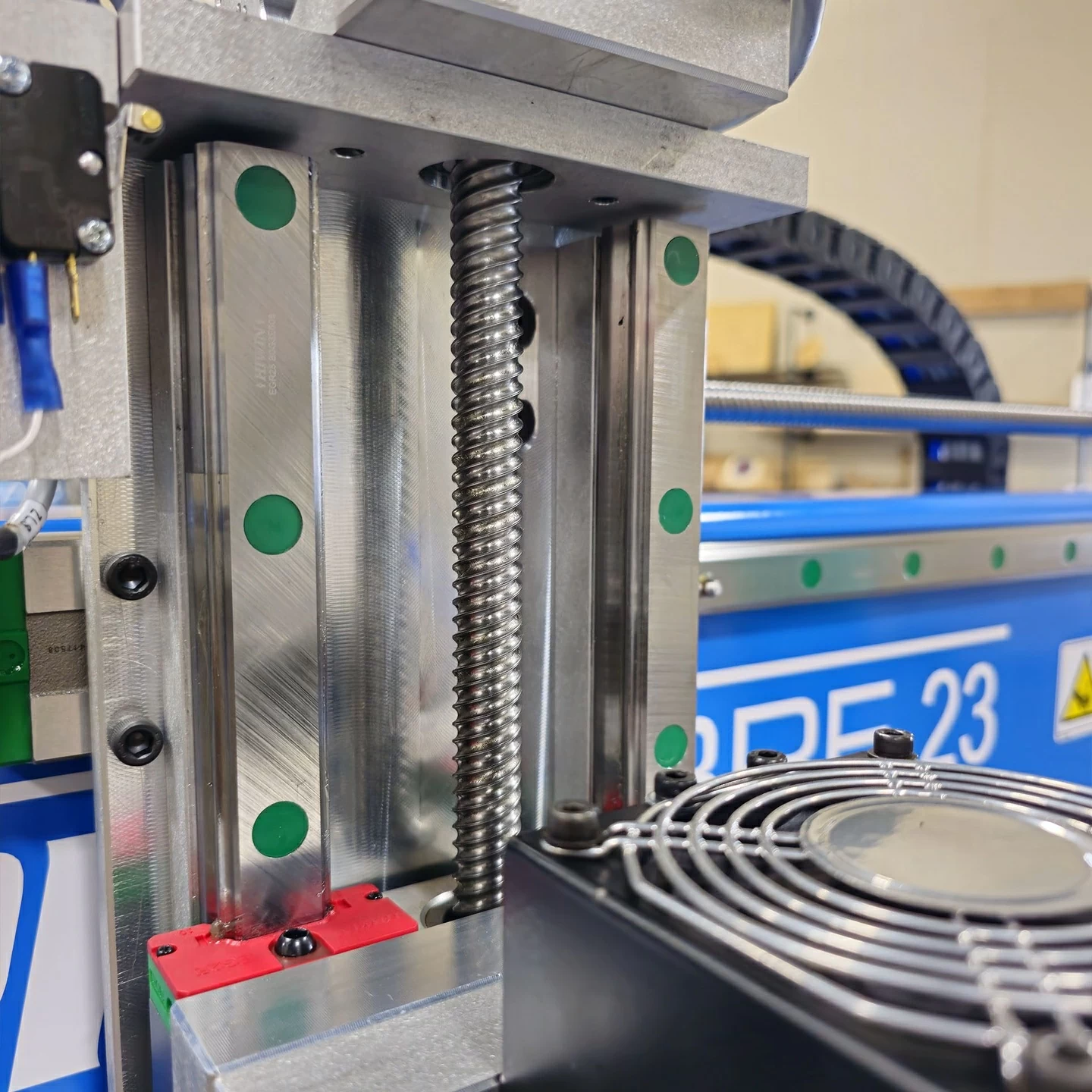

Ball Screw Technology
ShopSabre 23 Machines come standard with 3 Axis Ball Screw Drives giving you 2 times more rigidity than competing machines and unprecedented performance. Ball Screw Technology used at ShopSabre is the latest in the Industry including which gives you less backlash than Rack and Pinion and thanks to the compact design of the ShopSabre 23 there is no concern with whip. The Ball Screw Technology increases the cutting accuracy and gives you superior edge finishes Ball Screw Technology will outlast most comparable machines by as much as 3 to 4 times longer with very little maintenance required.
ShopSabre 23 CNC Router Features
HiFlow Vacuum Technology
ShopSabre CNC HiFlow Vacuum Technology increases the surface flow by as much as 50% over the competition which in the end results in higher holding pressures and power and better performance. Each Vacuum table on the 23 Series comes Milled from the factory by your machine cutting head reducing the needs for gaskets and bolts to hold your spoil board down and our exclusive HiFlow Grid makes nested manufacturing a breeze.
ShopSabre 23 CNC Router Features
Industrial Precision Frame
ShopSabre CNC Frames are FEA Engineered and Tested constructed from Massive Structural Steel Tubes which are Welded for added rigidity. Each ShopSabre 23 Series Frame comes with 2 Large Laterally Braced Tube legs to giving you more floor contact and better vibration control.
ShopSabre 23 CNC Router Features
Advanced Drive Motors
ShopSabre 23 Machines come standard with High Torque Industrial Grade Motors for Higher Accuracy, Higher Cutting Torque, and Less Maintenance. Each drive motor is specifically FEA paired to the machine for output and torque to assure you dont need to add air to the machine to operate regardless of the options you select!
ShopSabre 23 CNC Router Features
Aero Space Milling Technology
ShopSabre CNC Frames are Run through some of the worlds most advanced processes to assure they are accurate including Precision Milling of contact surfaces for Bearing & Rail Placement. A machine can only be as accurate as its foundation so the Frame on a ShopSabre is built to a tolerance above the competition.
ShopSabre 23 CNC Router Features
Ball Screw Technology
ShopSabre 23 Machines come standard with 3 Axis Ball Screw Drives giving you 2 times more rigidity than competing machines and unprecedented performance. Ball Screw Technology used at ShopSabre is the latest in the Industry including which gives you less backlash than Rack and Pinion and thanks to the compact design of the ShopSabre 23 there is no concern with whip. The Ball Screw Technology increases the cutting accuracy and gives you superior edge finishes Ball Screw Technology will outlast most comparable machines by as much as 3 to 4 times longer with very little maintenance required.
ShopSabre 23 CNC Router Features
HiFlow Vacuum Technology
ShopSabre CNC HiFlow Vacuum Technology increases the surface flow by as much as 50% over the competition which in the end results in higher holding pressures and power and better performance. Each Vacuum table on the 23 Series comes Milled from the factory by your machine cutting head reducing the needs for gaskets and bolts to hold your spoil board down and our exclusive HiFlow Grid makes nested manufacturing a breeze.
