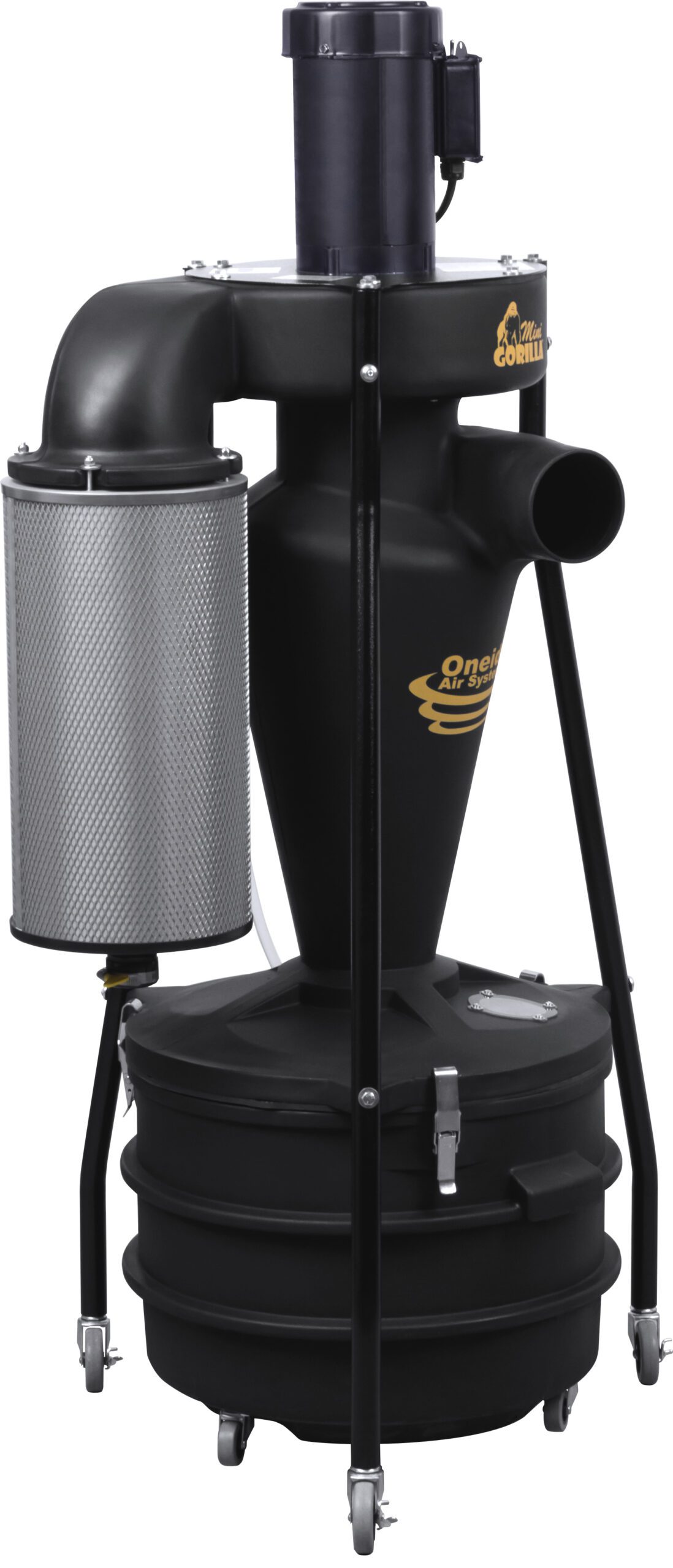

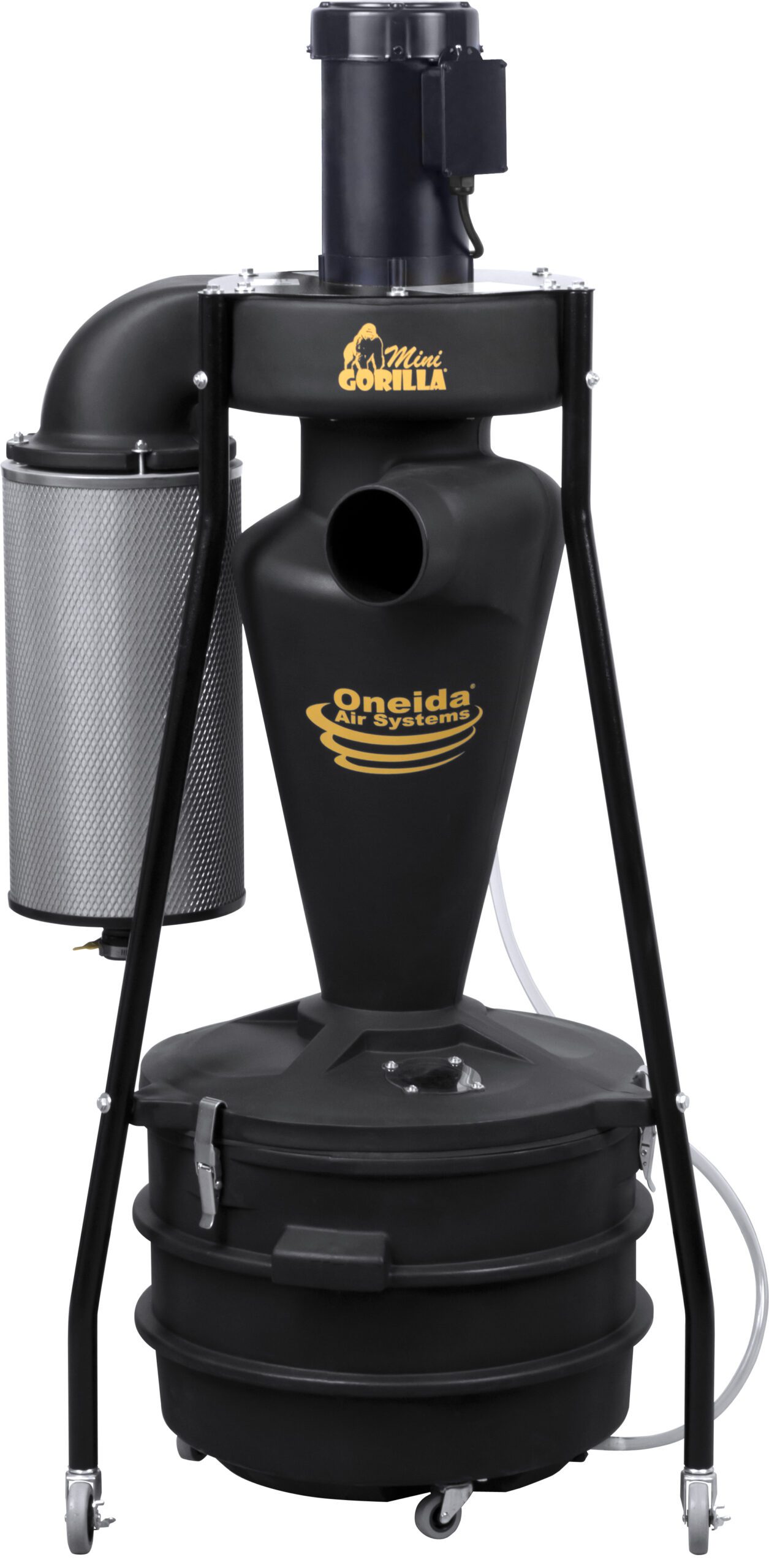

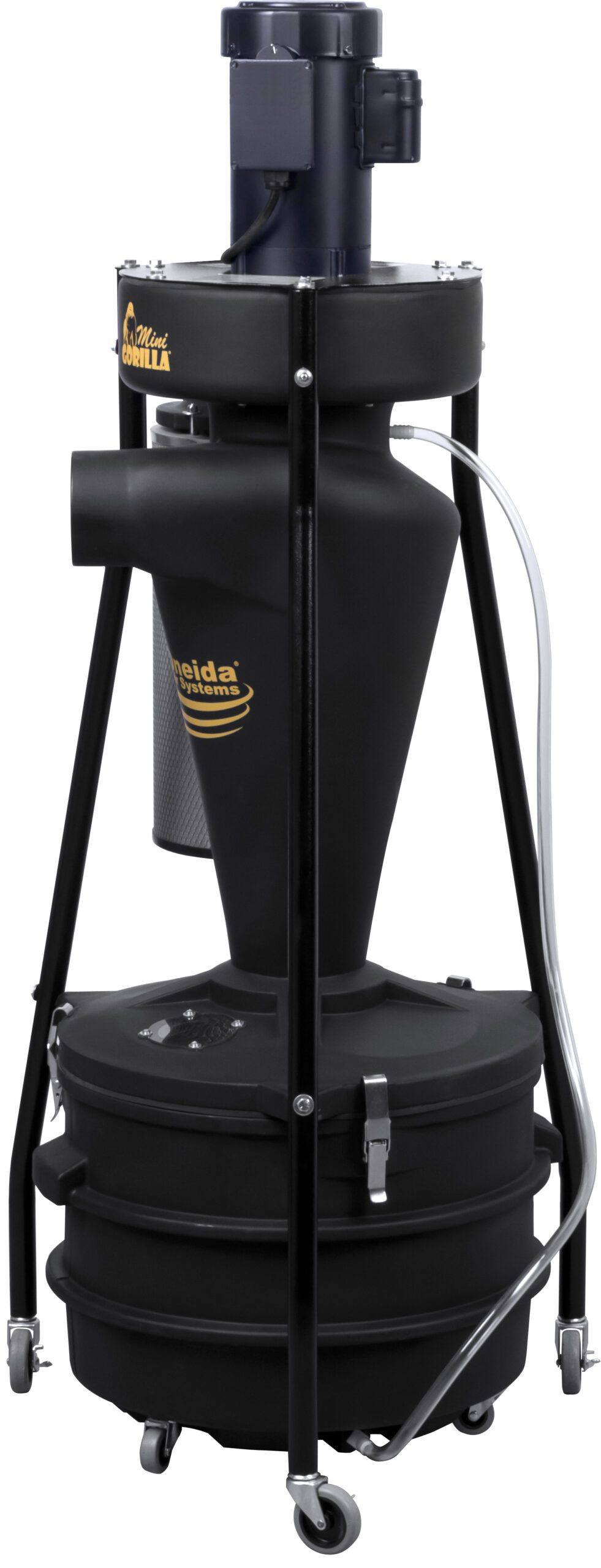

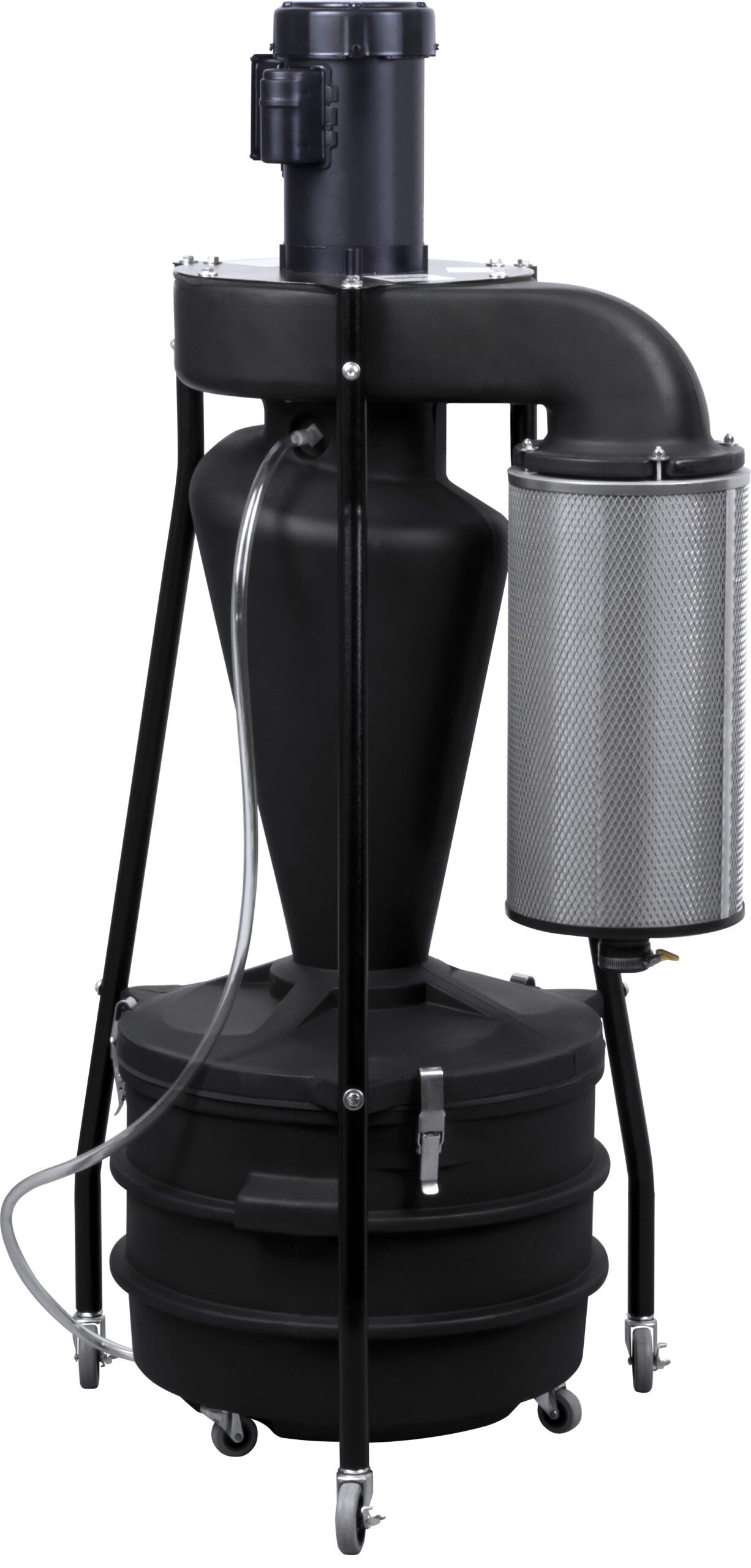

1.5hp Mini-Gorilla Portable 22. Gal HEPA-GFM Cyclone Dust Collector

$1,799.00

Description

Portable, Powerful, & Perfectly Designed

The Mini-Gorilla® Cyclone Dust Collector is one of Oneida Air Systems’ best designed products to date! Designed specifically for smaller workshops where the collector is moved from tool to tool, our Mini-Gorilla combines the quality and performance of a commercial system with the features and convenience of personal home units. Built to last a lifetime using industrial-grade materials, this portable system comes packed with new innovative features that have already earned it recognition as one of the best portable units on the market.

Recommended for tools with 4″ to 6″ dust collection ports, including lathes, jointers, shapers, planers, table saws, CNC router tables, disc sanders, drum sanders, belt sanders, and more!

Read MoreRead Less

Features

  • 1.5HP 120V Industrial U.S. Made Fan Blower Motor
  • 99% High-Efficiency Cyclone Separator with 5" Neutral Vane Inlet
  • HEPA-Grade Filter Media with Easy-Clean Vacuum Port
  • Compact, Steel Mobility Stand with Locking, Non-Marking Casters
  • 22-Gallon Drop-Down Mobile Dust Bin w/ Fill-Level Window
  • Automatic Liner Bag Holder System (2 Free Bags Included)
  • cETLus Certified and NFPA Compliance Ready
Get a Quote
Get Financing
Continuously High Airflow Performance
  • High-efficiency U.S. motor custom-tooled for Oneida Air Systems
  • Delivers up to 600 Actual CFM - ample airflow for any single woodworking tool
  • Industrial-grade brushless motor designed for continuous duty
  • Low pitch noise level provides ideal operator comfort
High-Efficiency Cyclone Separator

  • One of the 4 Tenets of Good Dust Collection is using a cyclone to remove waste from the incoming air. Once you’ve experienced the benefits of cyclonic separation, there’s no turning back!

  • Separates up to 99% of bulk debris and fine dusts from the airstream, containing it safely in the dust bin
  • Significantly extends the lifespan of the filter and reduces time needed for filter cleaning
  • Uniquely tall cyclone design maximizes particle separation performance
  • Neutral-vane inlet and integrated air ramp minimizes inbound air turbulence
  • Ideal for direct flex hose connections to tools

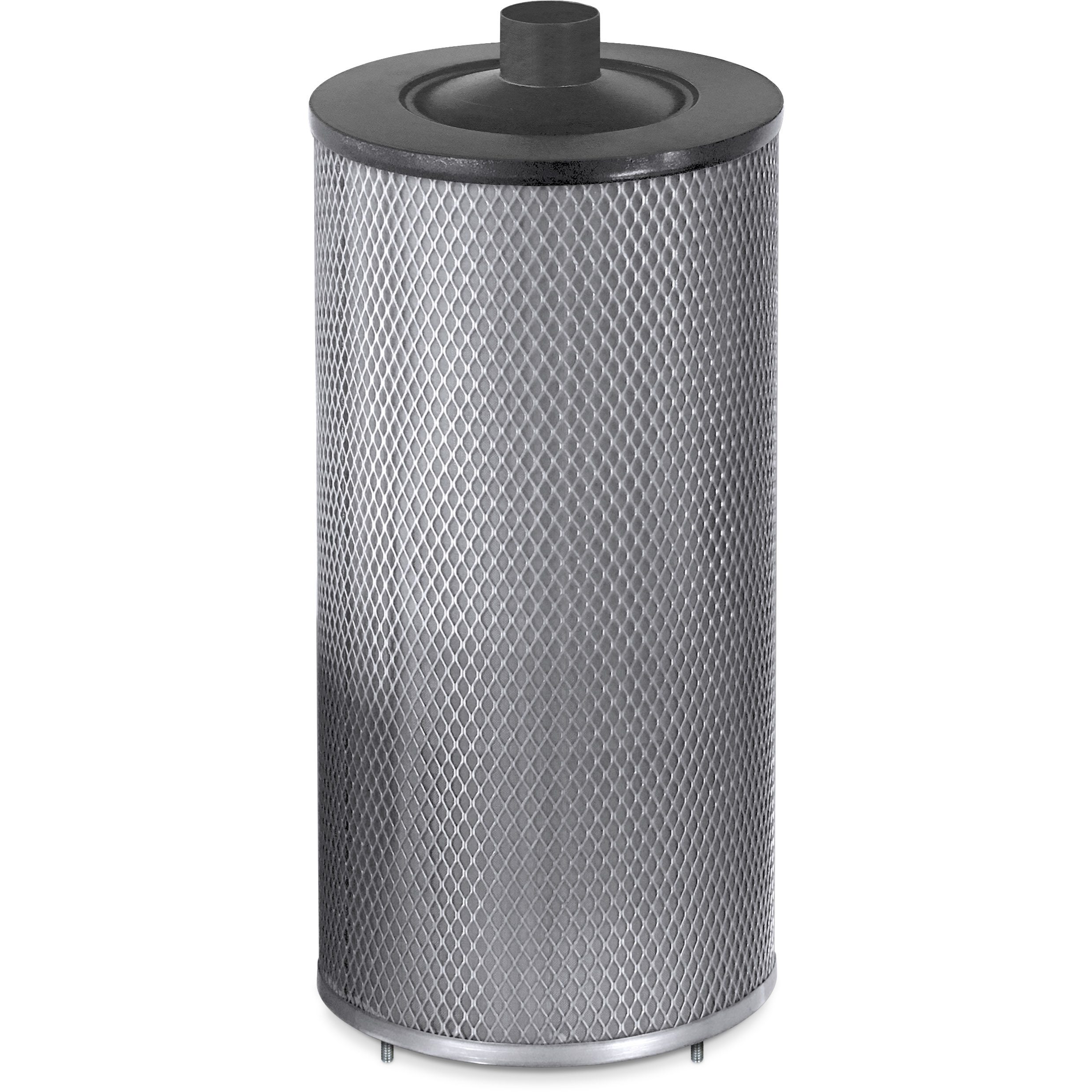

High Quality & Serviceable Filtration

  • The Mini-Gorilla system uses HEPA-Grade Filter Media specifically designed for dust collection applications – providing unbeatable airflow and filtration performance. Read more about our HEPA-GFM Advantage

  • HEPA-Grade Filter Media with an E12 minimum efficiency rating
  • 3rd party tested and verified by an accredited independent lab
  • Requires zero pre-loading; works at peak efficiency right out of the box and after every cleaning
  • Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance
  • Vacuum hose port lets you clean fine dusts released from the filter without disassembling the system
  • Durable fiber construction and wire cage reinforcement maximizes longevity
  • Equipped with patented Flame Guard arrestor to satisfy future planned fire safety codes
Lightweight, Compact, and Highly Mobile Design

  • We’ve optimized this system for smaller workspaces where the dust collector from tool to tool so we’ve molded the cyclone, fan housing, filter plenum, and the drum from an industrial static dissipative resin.

  • 30% lighter than the nearest competitor system - only 85 lbs.
  • Small footprint and low height saves valuable space within the shop
  • Mobile tripod stand provides maximum stability and easy access for movement
  • Large 3" locking casters roll easily over obstacles and won't scuff your floors
Easy-to-Handle Large Capacity Dust Container

  • The waste container of the Mini-Gorilla is a highly reinforced, lightweight, 22-gallon drum with non-marking casters. Easy to detach and empty, the Mini-Gorilla’s drop-down dust bin lets you work with maximum efficiency.

  • Large 22-Gallon capacity provides enough storage for hours of work

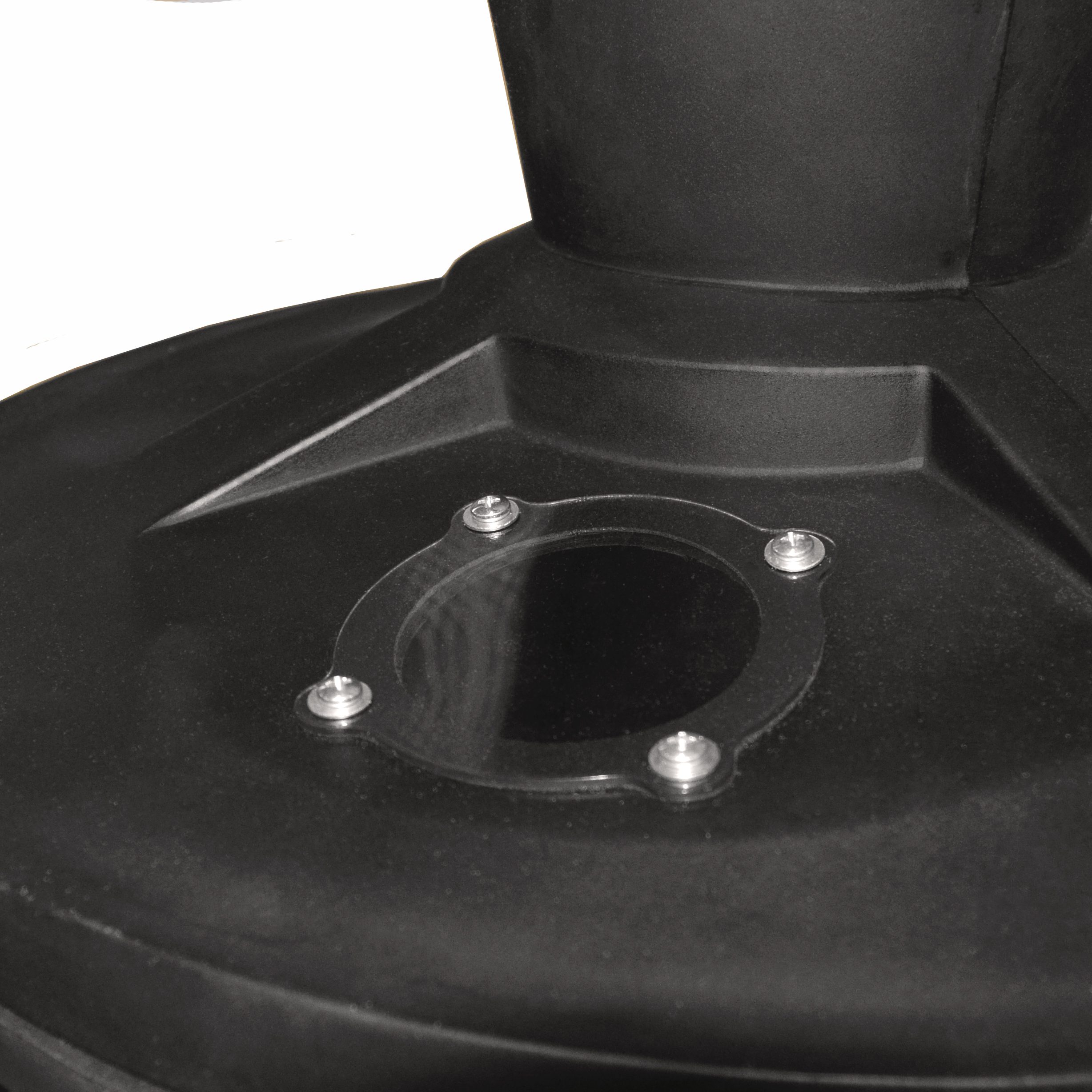

  • Dust level viewing window lets you see when the drum is getting full

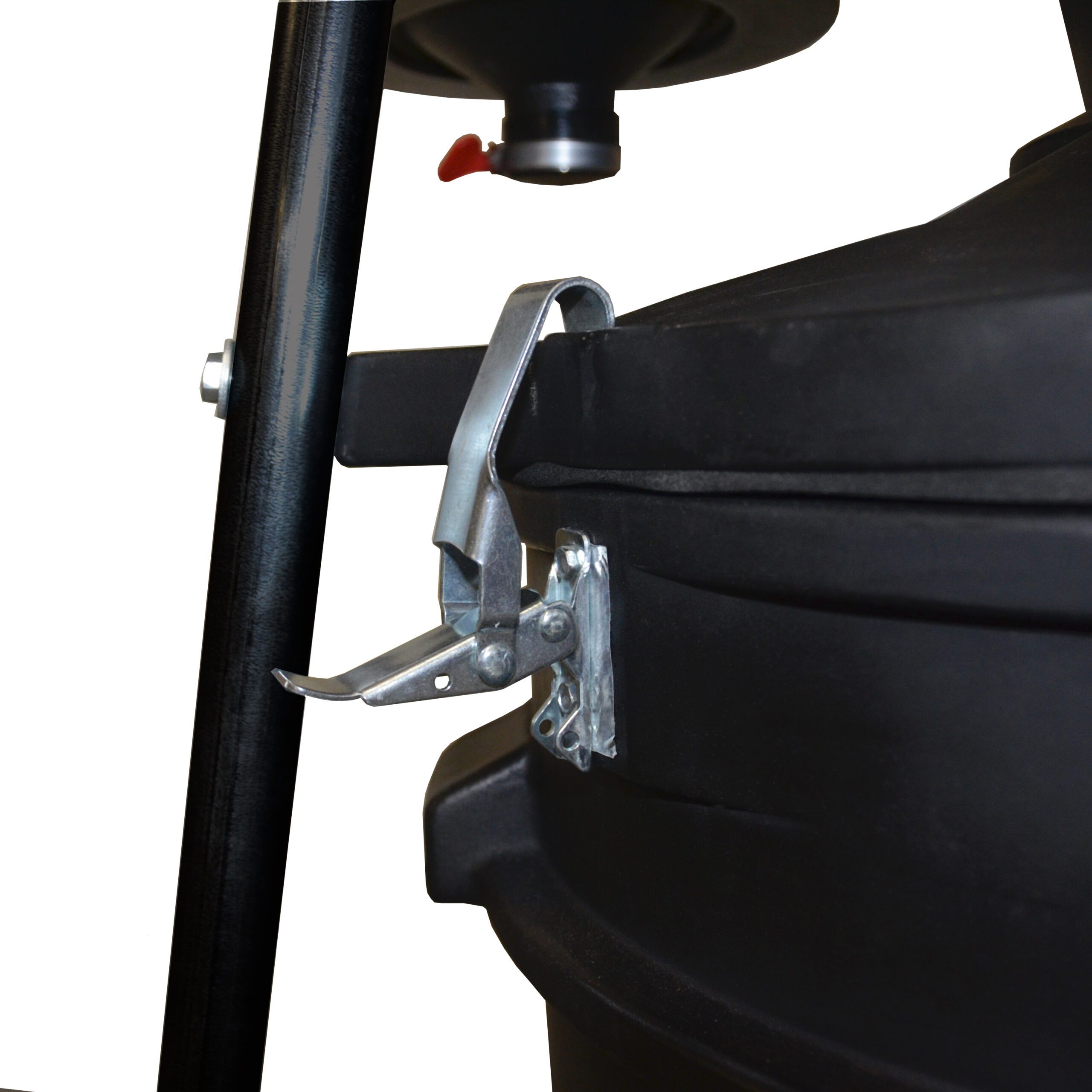

  • Three quick-release latches lift the drum off the ground while system is in use for higher mobility
  • Automatic bag holder lets you put disposal liner bags within the bin for quick and easy waste disposal
  • Features three free swiveling caster wheels and easy-carry handles for dumping
Downloads
Download Owners Manual
pdf
Download Fact Sheet
pdf

"*" indicates required fields

Thank you for your interest.

Please fill out the form below to receive your free Brochure.

This field is hidden when viewing the form
Category:

Specifications

Horsepower 1-1/2 hp
Motor Type U.S. TEFC Motor
Motor Service Factor 1.15
Voltage 110-120V
Recommended Breaker Size 20A
Amperage (Typical) 16A
Phase (Pre-Wired) 1-Phase
Frequency 60Hz
Power Connector NEMA 5-20 - 125V/20A
Power Cord Length 20 feet
Impeller Type Single-piece, backward inclined, non-sparking/non-ferrous, composite resin.
Impeller Size 13" Dia.
Real CFM Rating 583 Actual CFM at 2" S.P.
Maximum Suction 9" WC
Noise Level 80.5 dBA @ 10 ft
Filter Type HEPA Grade ePTFE Media
Filtration Efficiency E12 Minimum Efficiency Rating
MERV Rating MERV 16 ±
Total Filtration Area 40 sq ft
Portable Yes
Remote Control Sold Separately
Remote Control Part # Item #ARS115200
Primary Build Materials Static Dissipative Polyethylene
Static Resistance Rating Static Dissipative
Color Black
Inlet Size 5" OD
Width 28"
Depth 24.75"
Height 64.25"
Height to Center of Inlet 43"
Actual Weight 113.3 lbs.
Contents Blower Motor Assembly, Single-piece Fan Housing/Filter Plenum/Cyclone Separator, Stand, 3x Wheels, Drum, 3x Drum Casters, 2x Liner Bags, Viewing Window, FlameGuard Cartridge Filter w/ Clean Port, Hardware, Adapter Kit for 4" Hose
Country of Manufacture United States
Warranty Information 1 Year Limited Warranty
Certifications NFPA Compliance Ready. cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards.
Applicable Patents US Pat. #7824457, #D604464, #8496719, #8377160, #8491686
