a CEHISA industrial line machine

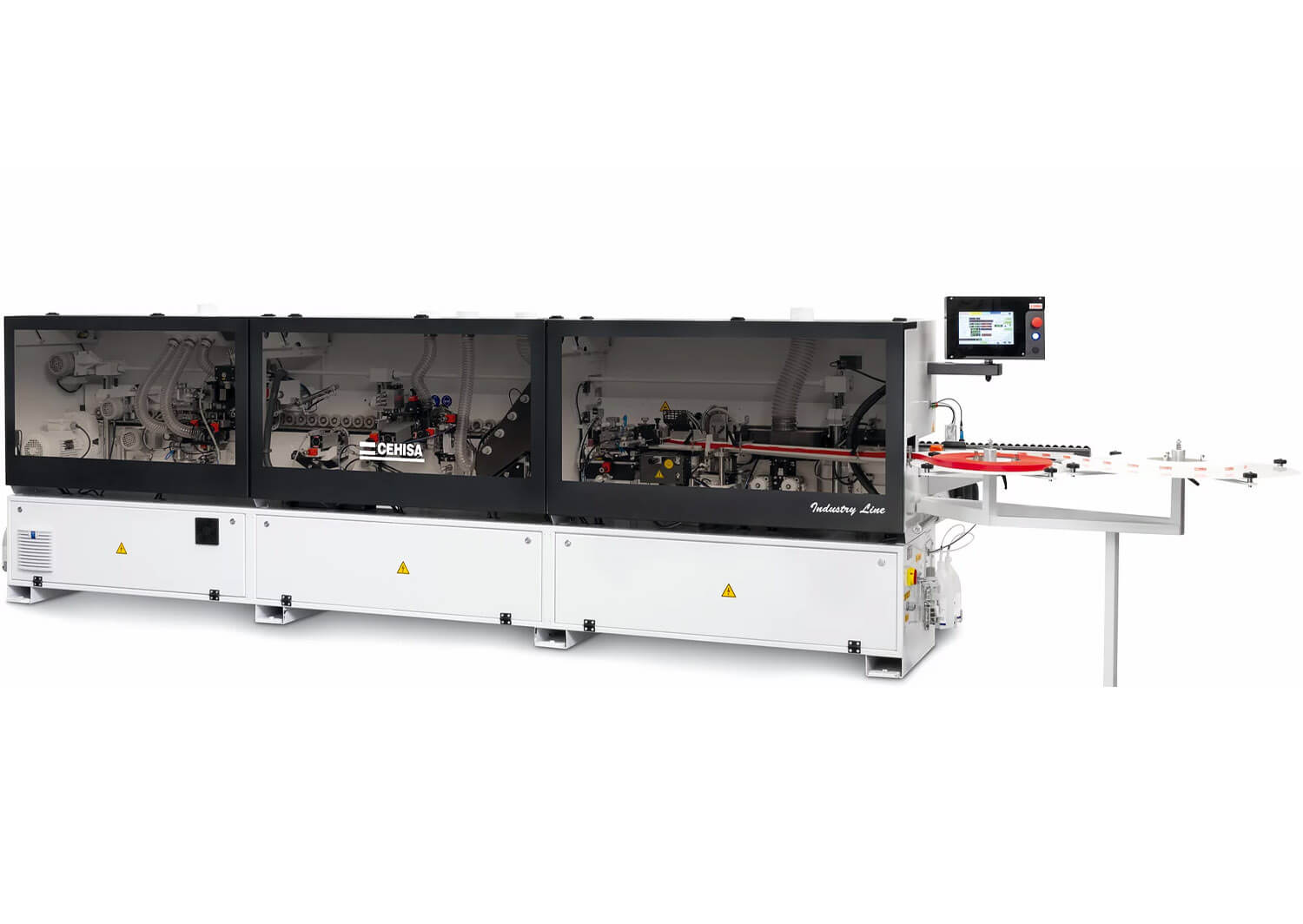

Cehisa PRO Series of Edgebanders

Description

The revolutionary PRO Concept series edgebander makes owning an automatic edgebander affordable. The PRO Concept series is best suited for automatic edgebanding applications with roll or strip material. Standard features include central top pressure and height adjustment, strip and roll feed magazine, end trim, top & bottom trim, buffing, digitals, high frequency motors and a Touch Screen Programmable Logic Control (PLC) unit.

Read MoreRead Less

Features

  • Cehisa PRO Series of Edgebanders
  • Impregnate paper, PVC, ABS, PP, acrylic, natural veneer and aluminum, with high gloss and 3D from 0.4 to 3.0mm in rolls and up to 8mm in solid wood strips.
  • EVA/PUR/PO and AirFlow System.
  • HF motors controlled by independent electronic converters, encoder controlled working groups and PLC controlled by TFT touch screen.
Get a Quote
Get Financing
Downloads
Download Brochure
pdf

"*" indicates required fields

Thank you for your interest.

Please fill out the form below to receive your free Brochure.

Hidden
Category:

Specifications

Edging material thickness 0.4-3mm
Solid edging thickness 8mm (with auto feed)
Panel thickness 8-60mm
Panel length 120-unlimited
Panel width 75mm - unlimited (60mm - unlimited optional)
Feed speed 9 & 14m/min
Working pressure 6-7kg/cm2
Power 3 phase/1 phase
